Description
Our simpleSpigot glass system is our straightforward, versatile, and durable glass balustrade solution. Our premium-grade Duplex 2205 spigots are an easy and cost-effective way to achieve a modern frameless glass railing.
In order to make the purchasing process as simple as possible, each 10mm toughened clear glass panel includes 2x spigots. Got a total span of 2700mm to cover? Simply purchase three of our 900mm glass panels and all spigots required will be supplied with your order.
Spigot base plate fixings are not included as these depend on your fixing substrate. Two fixing screws are required for each spigot.
All components, including glass panels, are stocked at our warehouse, which allows us to deliver the full system to anywhere in the UK in 1-4 working days. Same-day collection from Romford also available.
Building regulations notice, please read before purchasing: This configuration (with 10mm toughened glass) can only be used when the fall height is under 600mm, making it perfect for gardens, deckings, raised areas, patios, swimming pools and more. If you are protecting from a fall of over 600mm, these spigots have been load tested in accordance to BS6180 with larger laminated glass thicknesses - please contact us for more information.

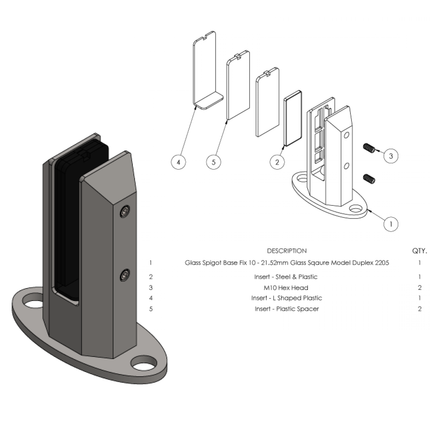

What's included?
Each standard size 10mm toughened clear glass panel includes 2x spigots. There are three spigot styles to choose from.
About our Oval Spigots
- All variations stocked at our warehouse & ready to ship - saving time and costs!
- Manufactured with using Duplex 2205 grade stainless steel for use in the most harsh outdoor environments.
- Available in three variant types: Rounded Oval Stainless Steel, Rounded Oval Matt Black and Square Oval Stainless Steel.
- No glass drilling is required.
- Base plate cover included as standard.

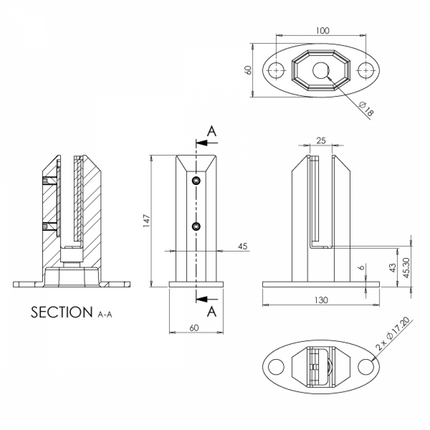

- 147mm high
- Base plates measure 60mm wide x 130mm long.
- Top-fixed for quick and simple installation.
About our 10mm Toughened Balustrade Glass
- Standard sizes are stocked at our warehouse & ready to ship - saving time and costs!
- Rounded corners with polished edges.
- UKCA, built to standards BS EN 12150
- 10mm thickness.
- All glass panels are 1000mm in height (total height with the spigots is 1044mm).
Our spigots with 10mm toughened glass panels can only be used if the fall height is under 600mm.
Disclaimer: It is the client's responsibility to ensure that the balustrade is installed safely and in accordance with relevant planning, building and safety regulations. GladwellGlass.co.uk take no responsibility for any structural requirements.
If you are unsure if planning permission is required for your project, click
here. To find more information about Building Regulations, click
here. If you live within within close proximity to the sea or salt water, you should properly maintain and clean your system.
