Aluminium Corner Post 90°, Square Profile, Silver Satan Anodised Finish.
Part of our stunning SMOOTH AR modular glass balustrade system.
Aluminium Corner Post 90°
| Height: |
1100mm |
| Width: |
50mm |
|
Diameter: |
50mm |
| Material: |
Aluminium |
| Finish |
Satin Anodised, Silver. Contact us for RAL colour options.
|
| Post Type: |
Corner Post 90° |
| Mount: |
Top
|
| Includes: |
Post caps, packers, rubbers, handrail screws and cover plate. |
| Range: |
SMOOTH AR |
| Product ID: |
GG-OL13460305011 |

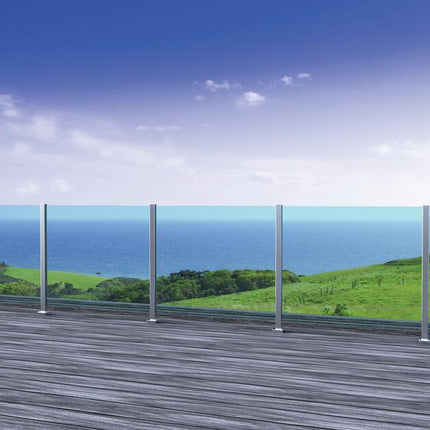

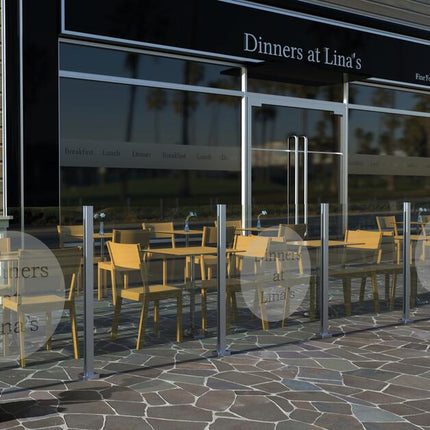

Smooth AR Modular Glass Balustrade System
SMOOTH AR glass railings are a range innovative railing systems designed to be fully modular. The pre-assembled aluminium posts have a stunning satin anodised finish and are available in square profiles ready to install. Fully engineered to meet the requirements of most applications, each system can be fully fitted using basic equipment.
Smooth AR Essential Features
- Fully assembled posts
- Aluminium & satin anodised finish
- To suit 10 mm and 10.76 mm glass
- Suitable for indoor & outdoor installations
- Quick, safe & easy installation
- Bottom edge of glass to floor is 90 mm
- Tested to 0.7 kN to 1.2 m post centres
- Posts available in bolt-down & side-fix
- Full customisable RAL colour options, contact us for more information.
What glass do I need?
The Smooth AR modular post glass balustrade system is designed for 10mm to 10.76mm glass.
You can use our 10mm thick toughened glass at 1000mm high if the drop height is under 600mm. Maximum recommended panel width 1200mm.
Where can I buy the glass?
You can purchase the glass from here. Make sure to tell us that you are purchasing the glass for the Smooth AR modular system and we will make sure your glass is the correct specification.
How can I purchase the handrail?
Please get in touch for handrail options.
I'm not too sure how to work out the measurements, can you help?
Yes! We offer a no obligation balustrade quotation service that includes a technical drawing with the final measurements.
Email contact@gladwellgass.co.uk or call us at 0208 7982 558 (Monday to Friday, 9:30 - 16:30)
Downloads
 |
|
|
| BS 6180:2011 Testing Certification |
Installation Instructions |
Brochure |
